Description

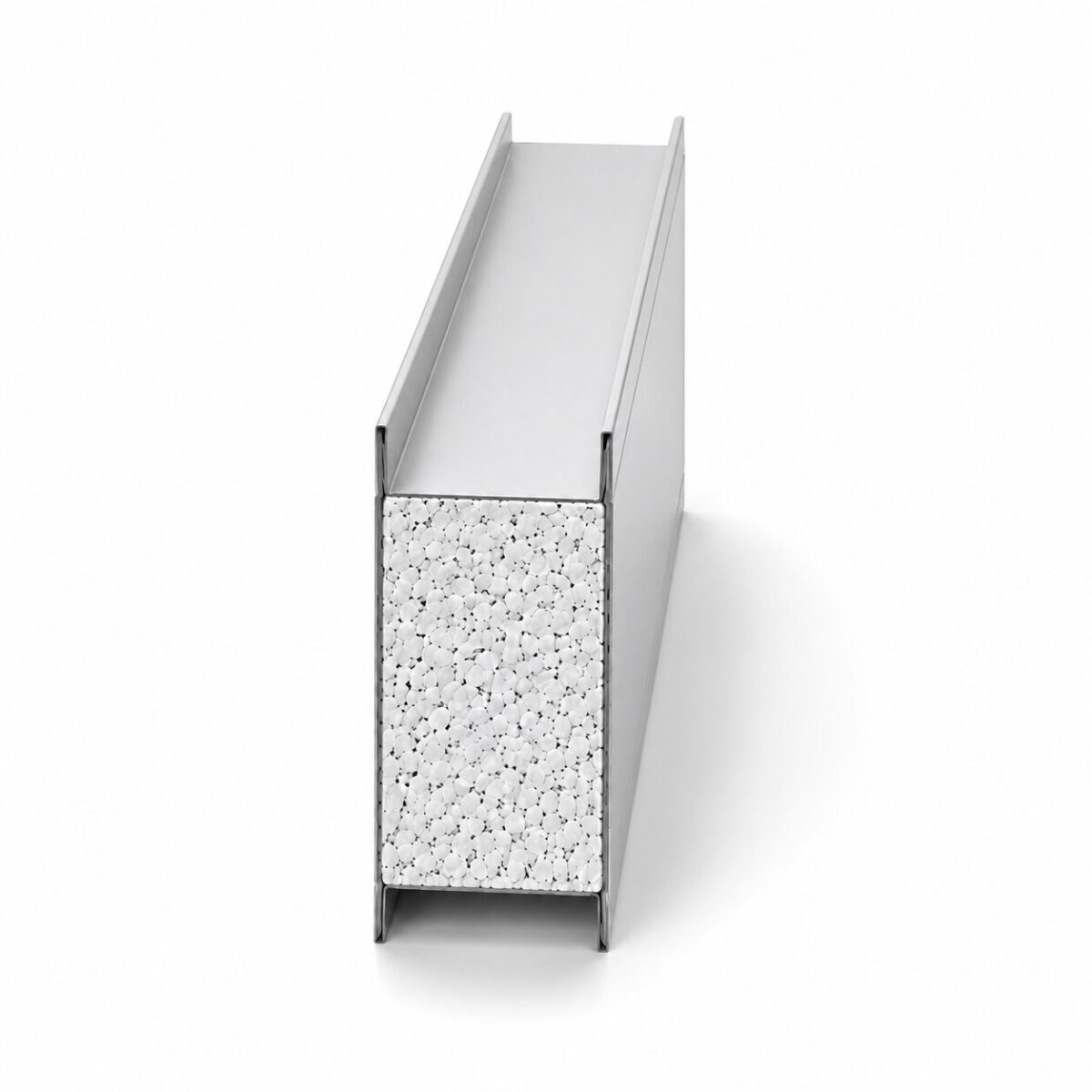

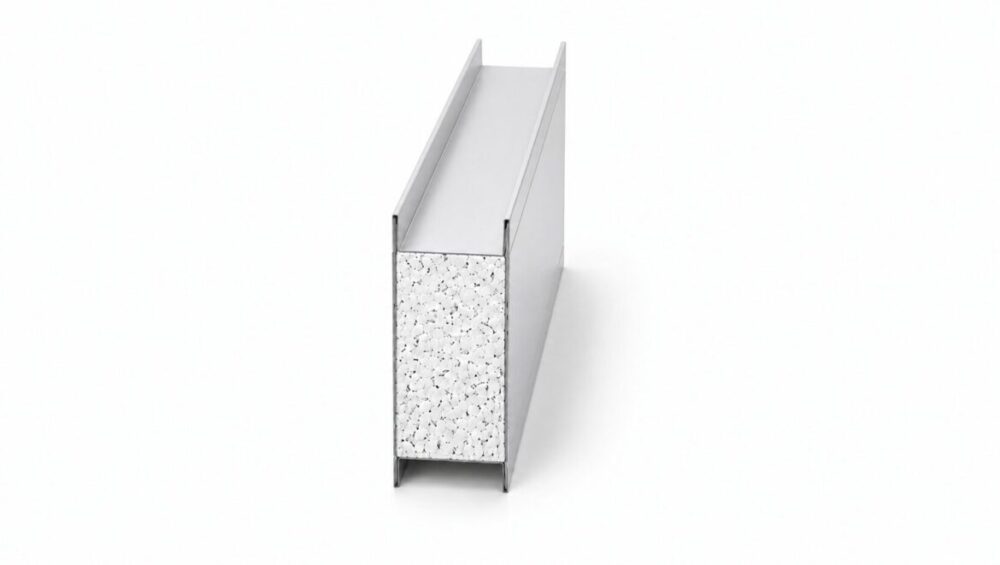

High-Performance Silica Core Sandwich Panels
High-performance Silica Core Sandwich Panels designed for cleanroom, pharmaceutical, healthcare, and industrial building applications. Featuring durable pre-painted galvanized steel facings, a high-density silica core, excellent fire resistance, superior thermal insulation, and outstanding dimensional stability. Ideal for cleanrooms, hospitals, electronics manufacturing, food processing facilities, laboratories, and modular construction projects.
1. Technical Specifications
| Specifications | Standard Value |
|---|---|
| Panel Thickness (mm) | 50 / 75 / 100 |
| Effective Width (mm) | 980 / 1180 |
| Panel Length (mm) | Customizable (Up to 6,000) |
| Facing Material | Pre-painted Galvanized Steel (PPGI) |
| Core Material | High-Density Silica Core |
| Fire Classification | A1 Non-Combustible |
| Thermal Conductivity (W/m·K) | ≤0.040 |
| Sound Reduction Index (Rw) | Up to 32 dB |
| Operating Temperature (°C) | -50 ~ +150 |
| Moisture Resistance | Excellent |
| Joint Type | Tongue & Groove |
2. Core Benefits
🔥 Superior Fire Protection
Built with an A1 non-combustible silica core and durable PPGI steel facings, the panel delivers exceptional passive fire protection while effectively preventing flame spread, making it suitable for buildings requiring the highest fire safety standards.
❄️ Excellent Thermal Insulation
The high-density silica core provides outstanding thermal insulation, reducing heat transfer and improving overall building energy efficiency in both hot and cold climates.
💪 High Structural Stability
The combination of rigid silica core material and high-strength steel facings ensures excellent dimensional stability, impact resistance, and long-term structural performance.
💧 Excellent Moisture Resistance
The silica core offers excellent resistance to moisture and humidity, maintaining stable performance without deformation or deterioration over long-term use.
🧩 Fast & Efficient Installation
Featuring precision tongue-and-groove joints, the panels provide secure connections and quick installation, reducing construction time and labor costs.
🌱 Sustainable Building Solution
Manufactured with environmentally friendly materials, the panels are recyclable, energy-efficient, and designed to support sustainable construction projects.
3. Applications
Cleanroom Systems: Pharmaceutical plants, electronics manufacturing, biotechnology laboratories, hospitals, and food processing workshops.
Industrial Buildings: Factories, production workshops, warehouses, equipment rooms, and partition wall systems.
Commercial Buildings: Office buildings, shopping malls, airports, schools, exhibition centers, and public facilities.
Healthcare Facilities: Hospitals, operating rooms, medical laboratories, and healthcare centers.
Modular Construction: Prefabricated buildings, modular houses, portable buildings, steel structure projects, and temporary facilities.
Key Advantages
- A1 Non-Combustible Fire Performance
- High-Density Silica Core
- Excellent Thermal Insulation
- Superior Moisture Resistance
- High Structural Stability
- Fast & Efficient Installation
- Energy-Efficient Building Solution
- Long Service Life
- Custom Sizes & Specifications Available
