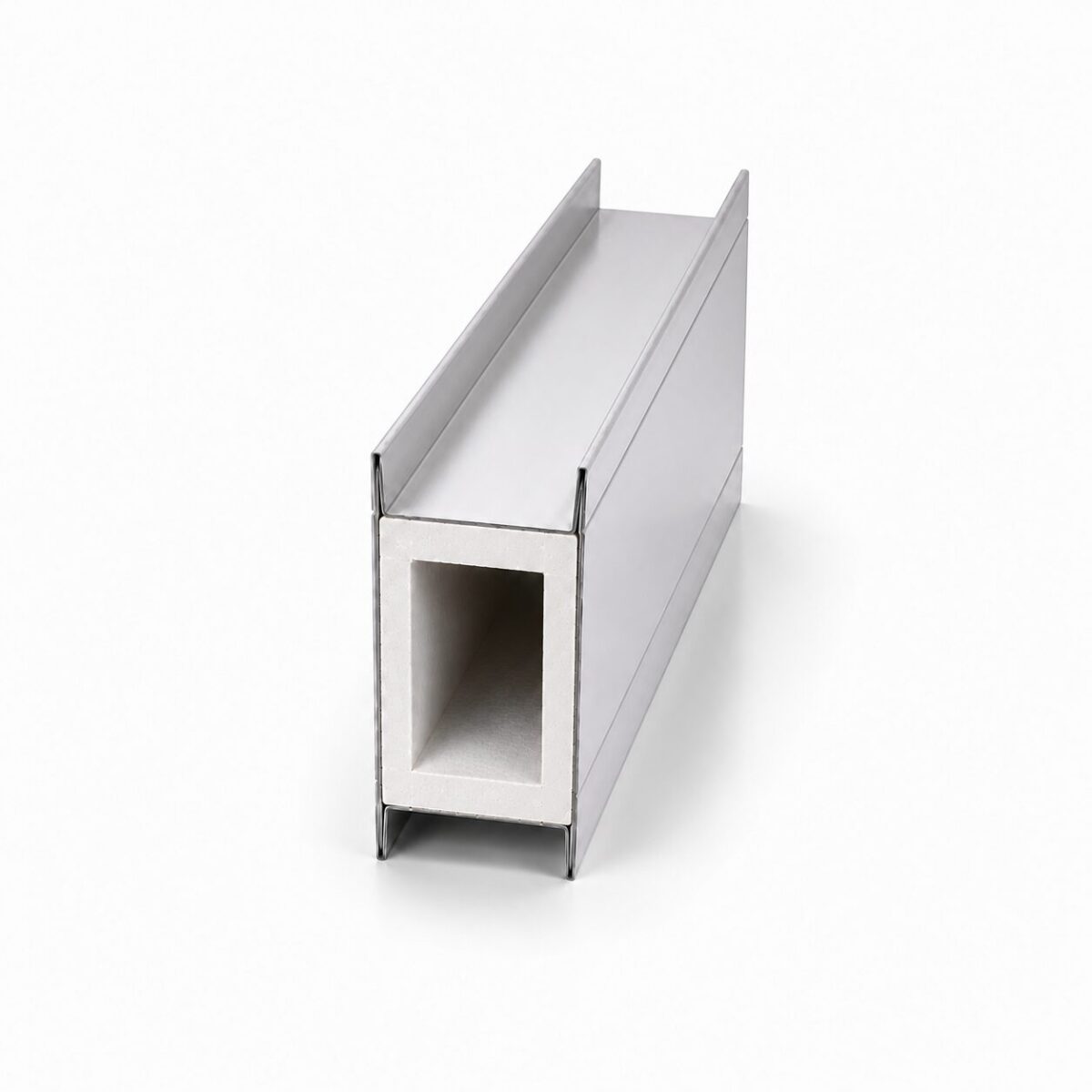

High-Performance Hollow MgO Sandwich Panels
High-performance Hollow MgO Sandwich Panels designed for cleanroom and interior partition applications. Featuring high-strength Magnesium Oxide (MgO) facings, a lightweight hollow core structure, excellent moisture resistance, and superior dimensional stability. Ideal for cleanrooms, pharmaceutical facilities, hospitals, electronics manufacturing, laboratories, and commercial partition systems.
1. Technical Specifications
| Specifications | Standard Value |
|---|---|
| Panel Thickness (mm) | 50 / 75 / 100 |
| Effective Width (mm) | 980 / 1180 |
| Panel Length (mm) | Customizable (Up to 6,000) |
| Facing Material | Magnesium Oxide (MgO) Board |
| Core Structure | Hollow Cavity |
| Fire Classification | A1 Non-Combustible |
| Thermal Conductivity (W/m·K) | ≤0.060 |
| Sound Reduction Index (Rw) | Up to 30 dB |
| Operating Temperature (°C) | -20 ~ +80 |
| Moisture Resistance | Excellent |
| Joint Type | Tongue & Groove |
2. Core Benefits
🔥 Superior Fire Protection
Manufactured with A1 non-combustible MgO boards, Hollow MgO Sandwich Panels provide outstanding passive fire protection while effectively reducing flame spread, making them ideal for buildings requiring enhanced fire safety.
💪 Lightweight & High Structural Stability
The lightweight hollow-core structure significantly reduces panel weight without compromising structural integrity, allowing for easier handling, faster installation, and lower structural loads.
💧 Excellent Moisture Resistance
Unlike conventional gypsum-based panels, MgO boards offer exceptional resistance to moisture, mold, and mildew, ensuring long-term stability in humid environments.
🧩 Fast & Efficient Installation
Designed with precision tongue-and-groove joints, the panels enable quick assembly, reducing installation time and labor costs for cleanroom and partition wall projects.
🌱 Eco-Friendly Building Solution
Manufactured from environmentally friendly materials, Hollow MgO Sandwich Panels are asbestos-free, recyclable, and contribute to sustainable, energy-efficient construction.
📐 Excellent Dimensional Stability
High-strength MgO facings provide excellent impact resistance, dimensional stability, and long-term durability while maintaining a smooth surface suitable for cleanroom environments.
3. Applications
Cleanroom Systems: Pharmaceutical factories, electronics manufacturing, biotechnology laboratories, hospitals, and food processing facilities.
Commercial Buildings: Offices, shopping malls, schools, airports, and public buildings.
Healthcare Facilities: Hospitals, operating rooms, medical laboratories, and healthcare centers.
Industrial Buildings: Interior partition walls, production workshops, and equipment rooms.
Modular Construction: Prefabricated buildings, modular houses, portable buildings, and temporary structures.
Key Advantages
- A1 Non-Combustible Fire Performance
- Lightweight Hollow-Core Design
- Excellent Moisture & Mold Resistance
- Superior Dimensional Stability
- Smooth Surface Finish
- Fast & Efficient Installation
- Environmentally Friendly Materials
- Long Service Life
- Custom Sizes & Specifications Available
